OB-FL-18W,24W,36W,48W,72W,54W,108W

CREE LED

LED Flood Light

Products

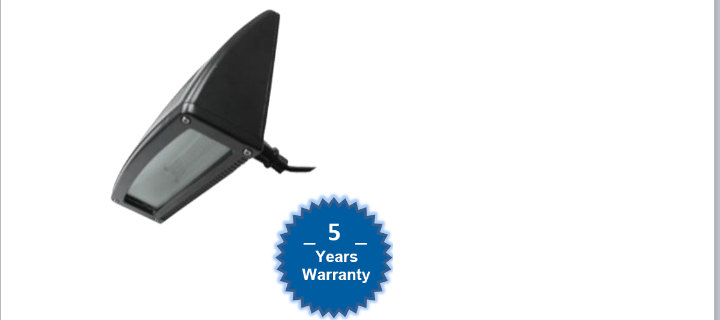

OB-FL-18W,24W,36W,48W,72W,54W,108W

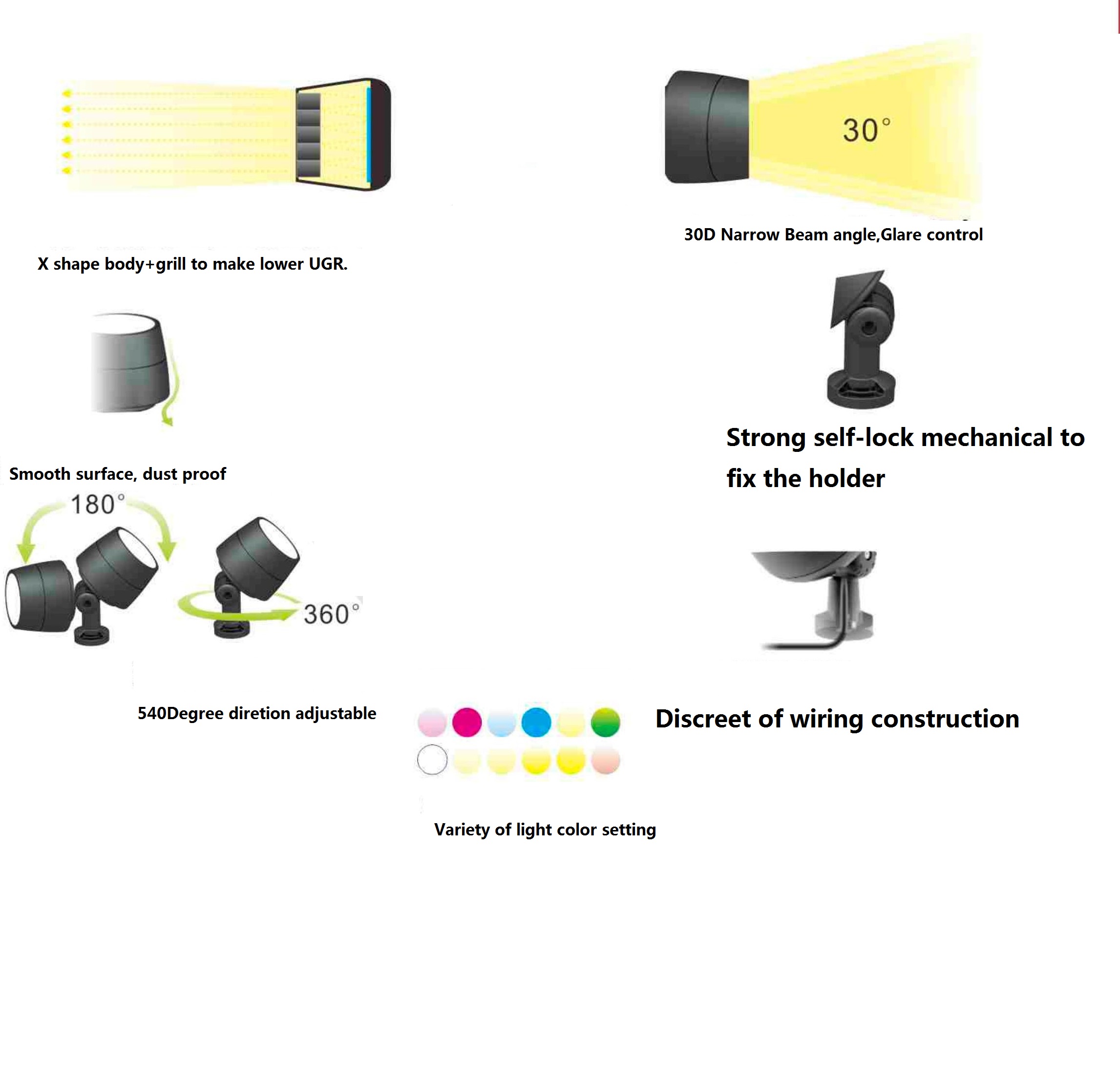

Key Features

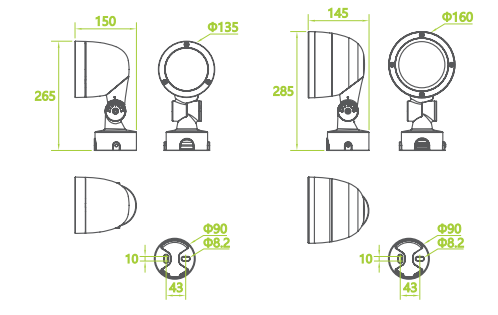

Mechanical Drawing

PDF Documentation

Features

Working voltage:	AC100-250V/ DC 24V , 50/60Hz Class I and Class III type
PF:	> 0.9
TECHNICAL CHARACTERISTICS
Color:	WW,NW,CW/RGBW
Color Temperature:	2700-3200K,4000-5500K,4000-5500K,RGBW
CRI:	>70Ra, can be over 80Ra		>70Ra, can be over 80Ra	>70Ra, can be over 80Ra
Lumens:	90LM/W
CONFIGURATIONS
LED chip:	COB CREE/OSRAM/PHILIPS
LED driver:	MEANWELL/PHILIPS
Heat sinks:	Die cast Aluminum
Body color:	White
OTHERS
Operating Temperature:		-35℃ to 50℃
Operating Humidity:		10%-90% RH
Storage Temperature:		-35℃ to 60℃
Warranty:		5 Years
Certificates:		TUV, SAA, RCM, CE, RoHS

Specifications

Model	LED (Pcs)	Wattage (W)	Colour	Lumens (Lm)	Size (mm)	Beam Angle(°)	Input Voltage(V)	Waterproof (IP)	Download
OB-FL-125-18W			WW,NW,CW	90LM/W	Ø135X150x265mm	3.5°/5°/7°/15°/25°/40°/60°	AC 220V/DC 24V	IP65
OB-FL-125-24W			WW,NW,CW	90LM/W	Ø135X150x265mm	3.5°/5°/7°/15°/25°/40°/60°	DC 24V	IP65
OB-FL-190-36W			WW,NW,CW	90LM/W	190(158)x154(313)mm	3.5°/5°/7°/15°/25°/40°/60°	AC 220V/DC 24V	IP65
OB-FL-190-48W			WW,NW,CW	90LM/W	190(158)x154(313)mm	3.5°/5°/7°/15°/25°/40°/60°	AC 220V/DC 24V	IP65
OB-FL-190-72W			WW,NW,CW	90LM/W	190(158)x154(313)mm	3.5°/5°/7°/15°/25°/40°/60°	DC 24V	IP65
OB-FL-240-54W			WW,NW,CW	90LM/W	240(200)x195(357)mm	3.5°/5°/7°/15°/25°/40°/60°	AC 220V/DC 24V	IP65
OB-FL-240-108W			WW,NW,CW	90LM/W	240(200)x195(357)mm	3.5°/5°/7°/15°/25°/40°/60°	DC 24V	IP65
			WW,NW,CW	90LM/W

Photometric Curve

Application
Installation

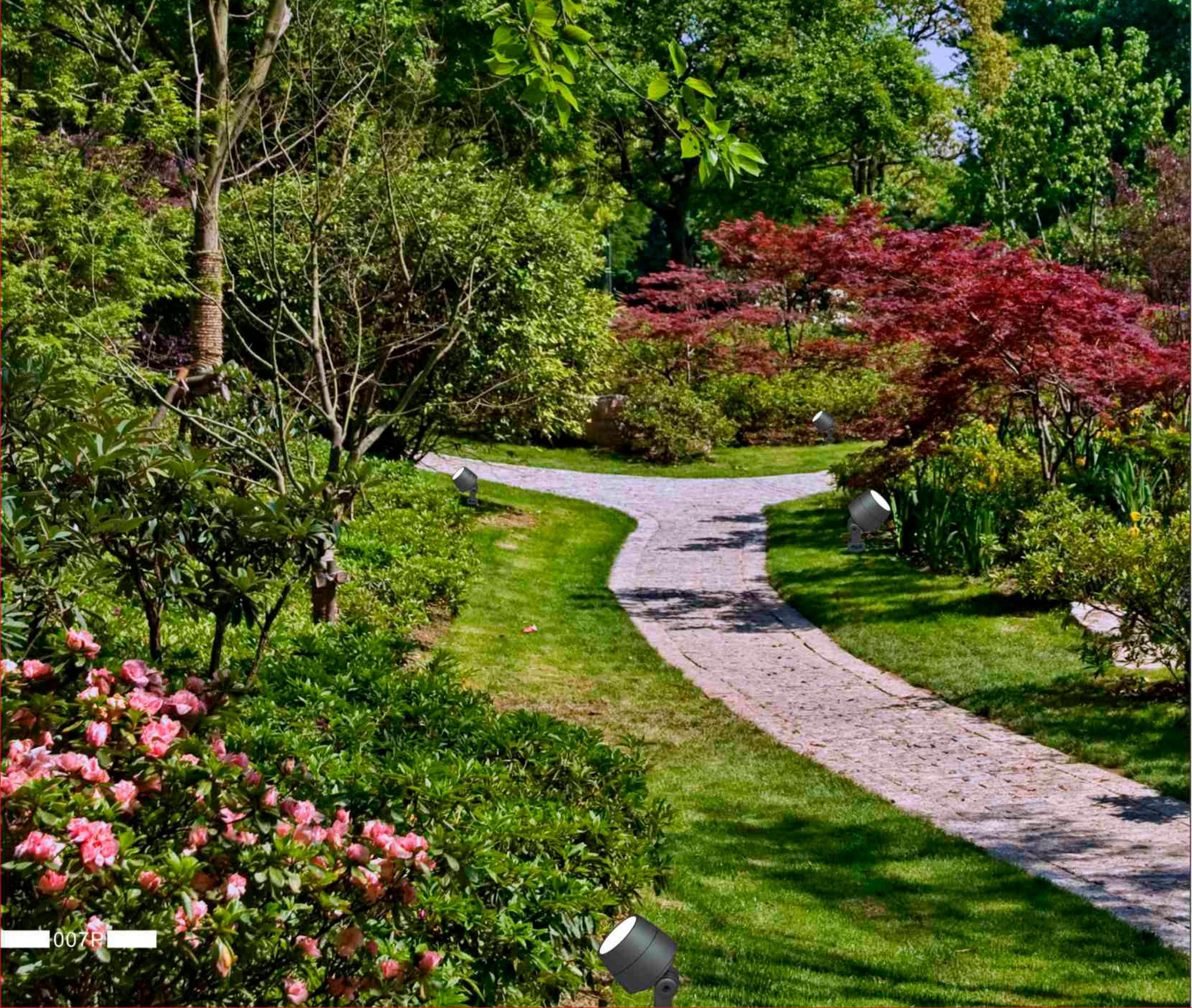

Lawn lighting,landscape lighting,tree lighting,garden lighting,post lighting,

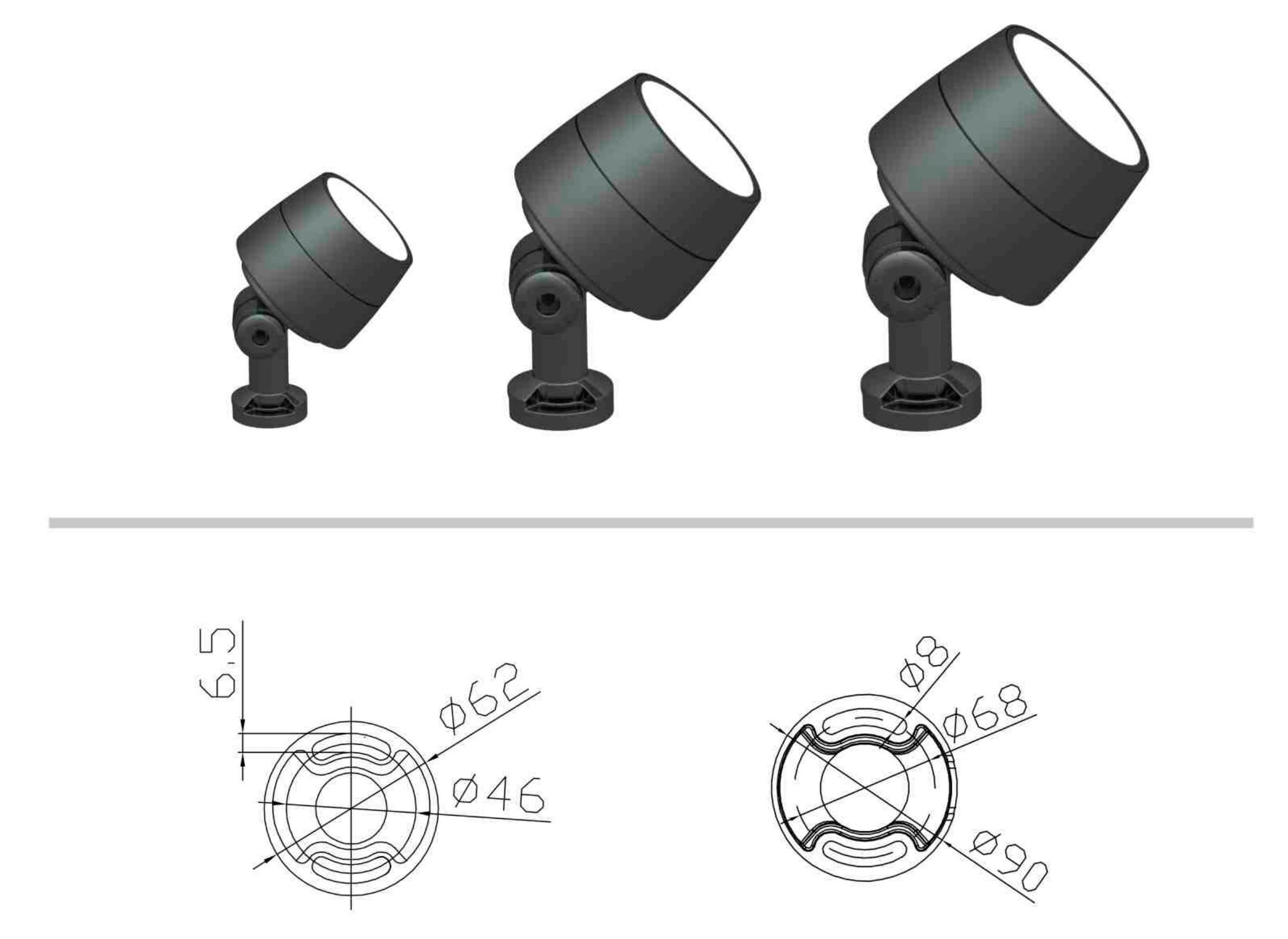

Installation 1: Floor lighting.

The fixture is to be installed on lawn. Suitable for park,wetland,lawn environment tree lighting.

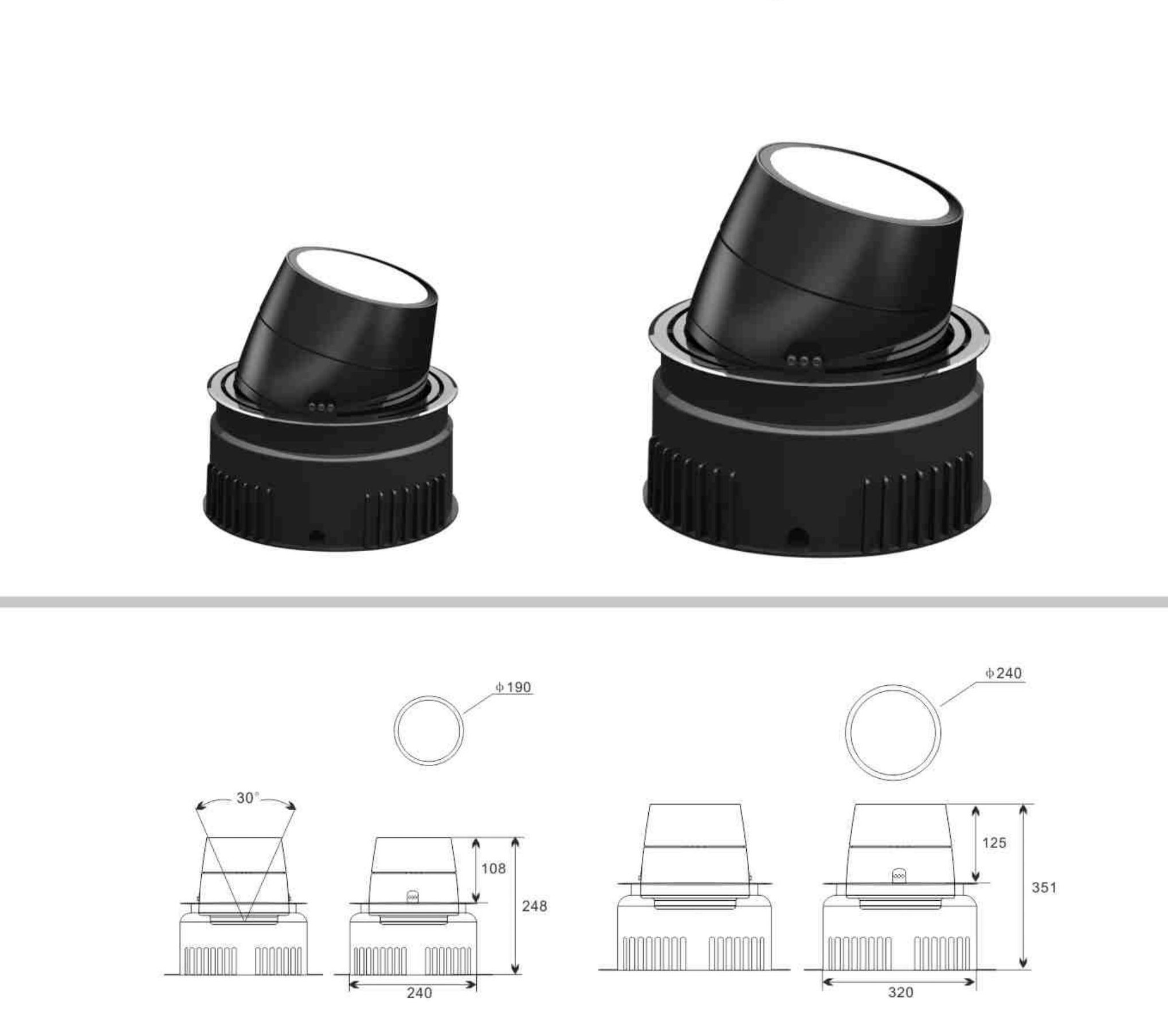

Installation 2: Half Recessed buried lighting.

The fixture is to be installed on lawn and stone,tree pool ...lower ground tree spot lighting. It needs to avoid grass. Excellent glare control,high density PE corrosion proof embed cover. Stainless steel 304 bezel. 5mm high density tempered glass. Vertically ±30° Rotation, Horizontally 70° Adjustable. .

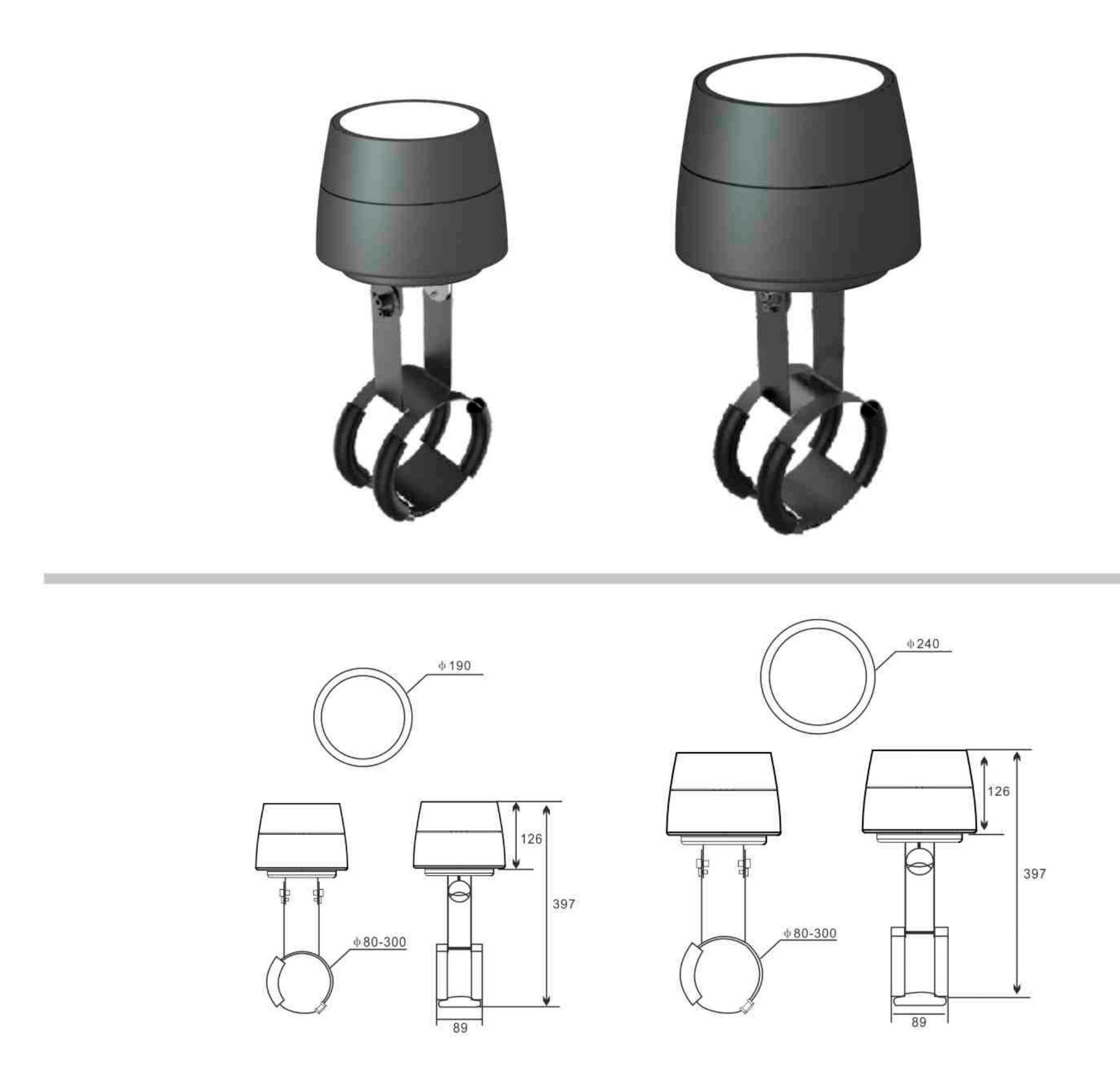

Installation 3: koala bear type.

Flexible stainless steel spring at the bottom of the lamp,which can be held in the tree trunk without obstruction and damaging the growth of trees. Easy installation and integration environment.

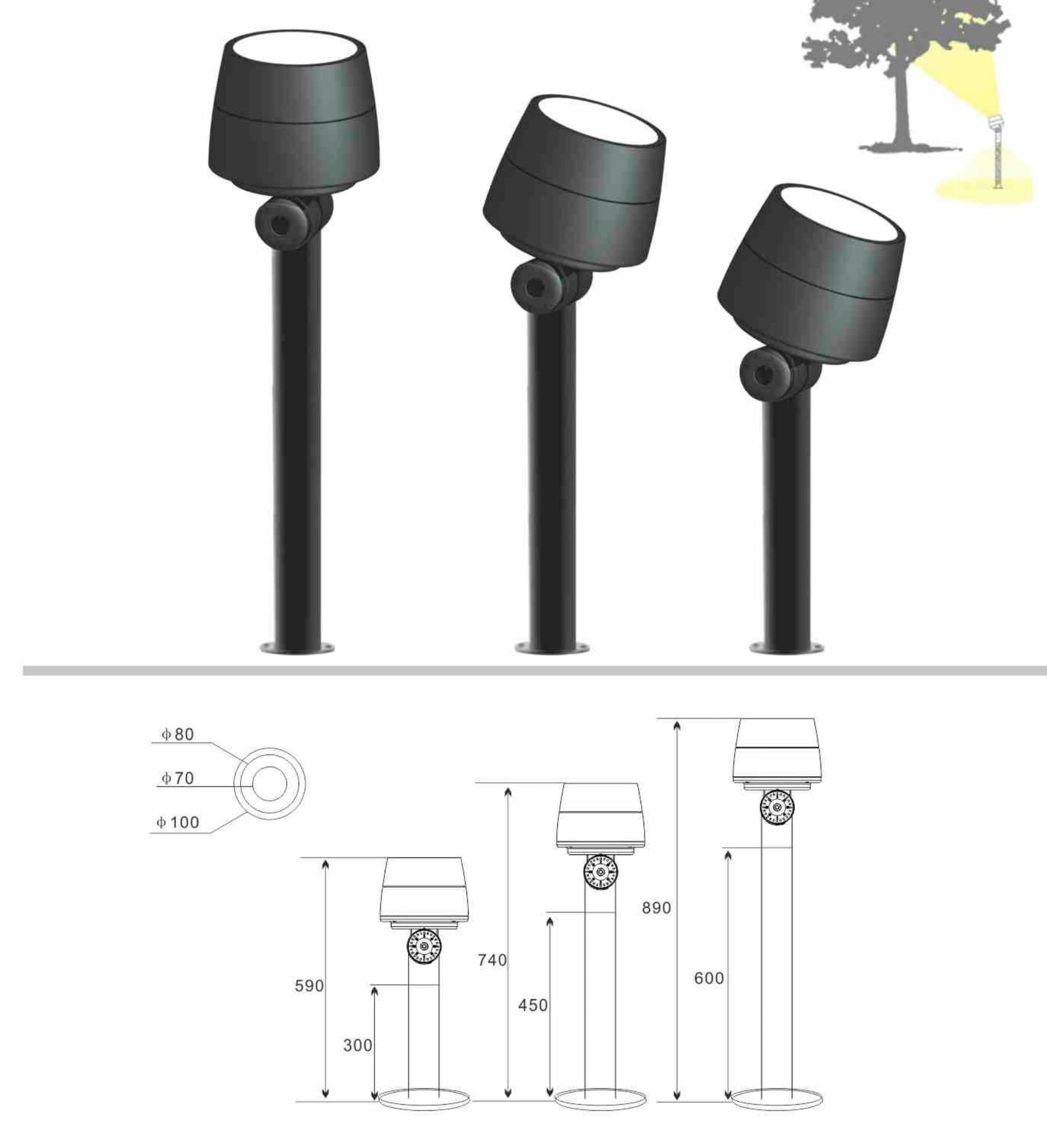

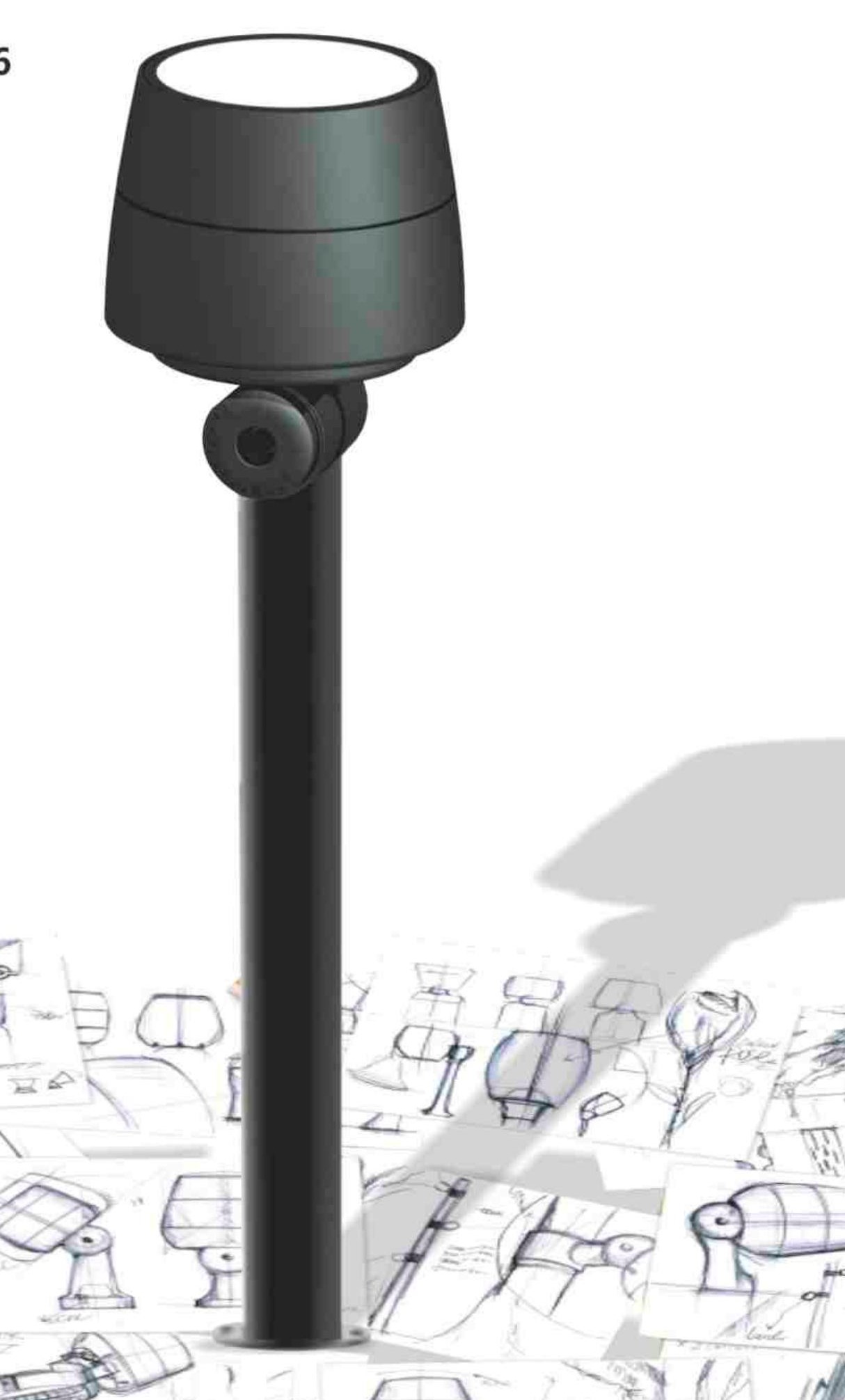

Installation 4: Lawn lighting and tree lighting 2 in 1 type.

Flexible stainless steel spring at the bottom of the lamp,which can be held in the tree trunk without obstruction and damaging the growth of trees. Easy installation and integration environment.

The lamp combine the lawn lamp and the tree. For the lawn, on both side of trails, among shrube as trees. The realization of irradiation lawn, road, according to tree integration.

The top lamp is diecast aluminum alloy, the rod body is stainless steel laser engraving, built-in LED light source.

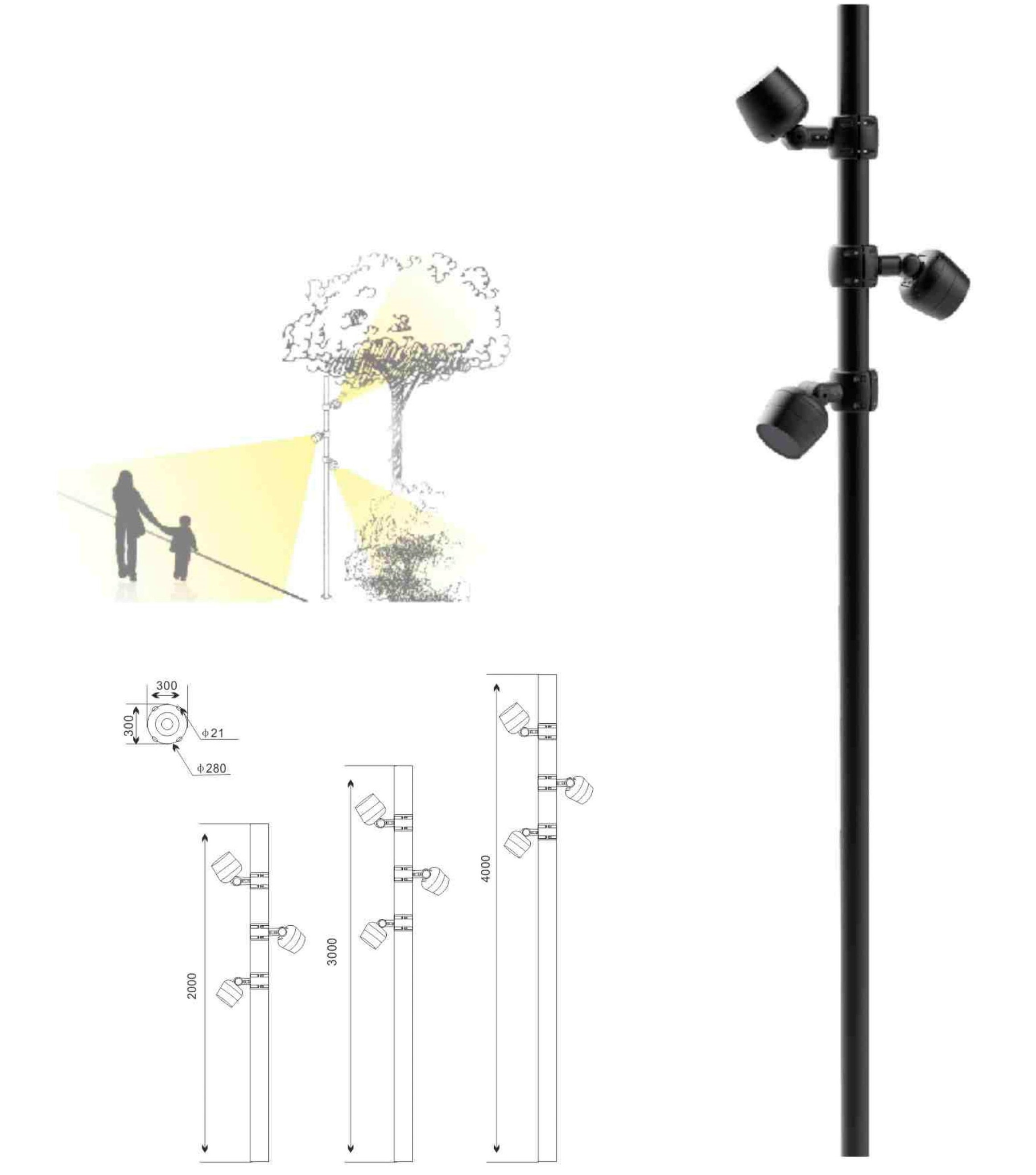

1: Pole lock mount:

2: Surface mount:

The lamp is installed on the straight rod,which can realize multi direction and multi angle irradiation. Both high and low trees,trails and other multi-faceted common lighting.
