Efficiency: >92%Protection: OTP, OCP, OVP, SCP Surge Protection: 6KV Waterproof: IP66
Impact Test: IK08 Corrosion Proof: WF2Electrical: 100-277V, 50/60Hz
Operating Temperature: -40~60 TM21: L90B10 50,000H Lifetime: 50,000H
Housing: Die-cast Aluminum ADC12 Thermal Conductivity: 96 W/m;K Led: CREE JK3030
CRI: Ra>80 ( 90 for option) SDCM: <6Power Factor: >0.95THD: <15Driver: Meanwell HBG Driver
TM21/LM79/LM80
| Model | LED (Pcs) | Wattage (W) | Colour | Lumens (Lm) | Size (mm) |
Beam Angle(°) |
Input Voltage(V) |
Waterproof (IP) | Download |

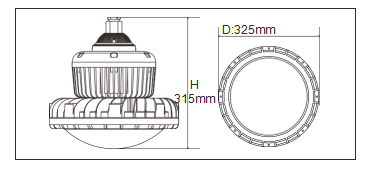

| OB-HB-EX-60W | 60W | WW,NW,CW | 7800Lm | 325*315mm | 120D | 100~277V | IP66/IK08 |  |
|
| OB-HB-EX-80W | 80W | WW,NW,CW | 10400Lm | 325*315mm | 120D | 100~277V | IP66/IK08 | |
|
| OB-HB-EX-100W | 100W | WW,NW,CW | 13000Lm | 325*315mm | 120D | 100~277V | IP66/IK08 | |
|
| OB-HB-EX-120W | 120W | WW,NW,CW | 15600Lm | 325*315mm | 100~277V | IP66/IK08 | |
||
| OB-HB-EX-150W | 150W | WW,NW,CW | 19500Lm | 325*315mm | 120D | 100~277V | IP66/IK08 | |
