Options
Microwave motion sensor Daylight sensor
Area of application
Garages and parking lots Entrance areas and walkways Stairways & storage areas
Certificates
CE, RoHS, UL, cUL , DLC Premium

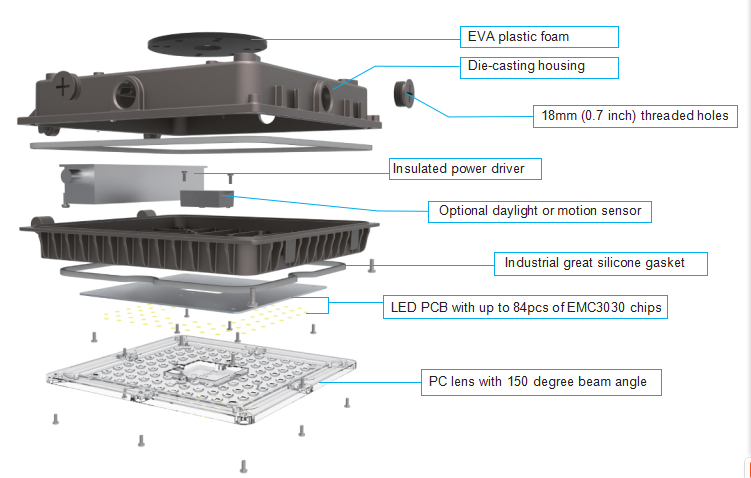

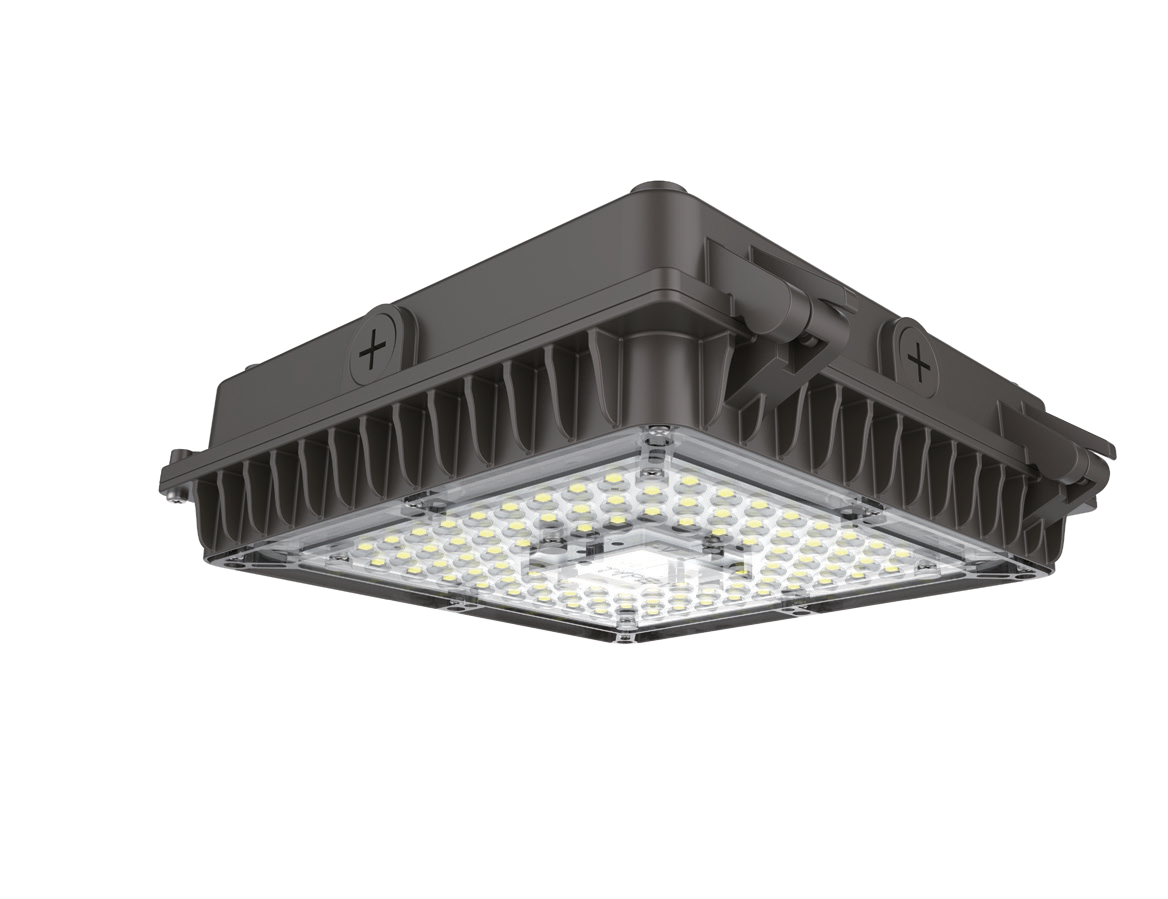

The parking garage light fixture is designed to meet the lighting needs of parking garages, parking lots and similar facilities while providing substantial cost savings. Its 40W and 60W are replacement options for
225W to 325W of Traditional Lighting Resulting in Up to 80% Savings. The bright, uniform illumination diminishes shadows and improves visibility, helping people feel safer and drivers feel more in control.
|
OB-CNP-40W-IP65
|
40W
|
AC100~277V 50~60Hz
|
130±10
|
5200±1000
|
150°
|
54 PCS
EMC 3030
|
|
OB-CNP-60W-IP65
|
60W
|
AC100~277V 50~60Hz
|
130±10
|
7800±1000
|
150°
|
84 PCS
EMC 3030
|
|
Operating frequency
|
47-63HZ
|
Available light colors
|
warm white;natural white; daylight white
|
|
Type of current
|
AC100-277V
|
Available color temperatures
|
3000K;4000K;5000K;6000K
|
|
Power factor λ
|
>0.9
|
Color rendering index Ra
|
>80
|
|
Efficiency in %
|
>90%
|
Standard deviation of color matching
|
< 5
|
|
Start time (0.2s / 0.5s / … )
|
0.1S
|
UGR (Unified Glare Rating)
|
<27
|
|
Warm-up time to 60 % (1.5s / 2s / … )
|
0.5S
|
Available beam angles
|
150°
|
|
Type of protection
|
IP65
|
Heatsink temperature
|
-20~+70℃
|
|
Tested dielectric strength
|
3.75KVac
|
Ambient temperature
|
-30~+50℃
|
|
Safety features
|
Open circuit protection; short circuit protection ; overvoltage protection
|
Storage temperature
|
-40~+80℃
|
|
Certificates
|
CE, RoHS, UL, cUL , DLC Premium
|
|
|
|
Energy efficiency class
|
A+ & A++
|
|
|
Rated nominal Lifetime
|
5 Years
|
Base/Socket
|
Directly wired
|
|
Switching cycles
|
100,000 times
|
Dimmable
|
1-10V Dimmable
|
|
Lumen maintenance at e.o.l.
|
70%
|
|
|
Packing Information
|
Model
|
D imension(MM)
|
CTN SIZ E(CM)
|
QT Y/ CT N
|
Net Weight/pcs(kg)
|
Gross Weight /CTN(kg)
|
|
OB-CNP-40W/60W-IP65
|

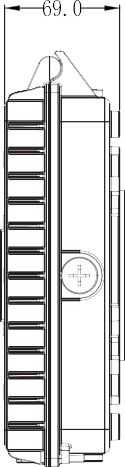

250*230*69
|
52.5*48.5*17.5
|
8PCS
|
14
|
18
|
| Model | LED (Pcs) | Wattage (W) | Colour | Lumens (Lm) | Size (mm) |
Beam Angle(°) |
Input Voltage(V) |
Waterproof (IP) | Download |
| OB-CNP-40W-IP65 | 40W | WW,NW,CW | 5200Lm | 250*230*69 | 120D | AC100~277V 50~60Hz | IP65 |  |
|
| OB-CNP-60W-IP65 | 60W | WW,NW,CW | 7800Lm | 250*230*69 | 120D | AC100~277V 50~60Hz | IP65 | |
Carefully read and follow all warnings and instructions before installing or servicing the luminaire.
The installation should be done by an individual familiar with the construction and operation of the luminaire. The installation of this luminaire must be in accordance with national and local building and electrical codes. The product must not be damaged or operated in a damaged condition.

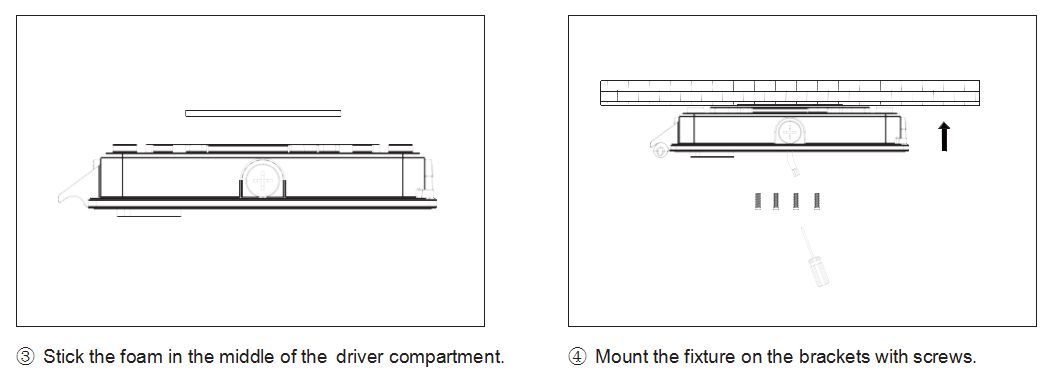

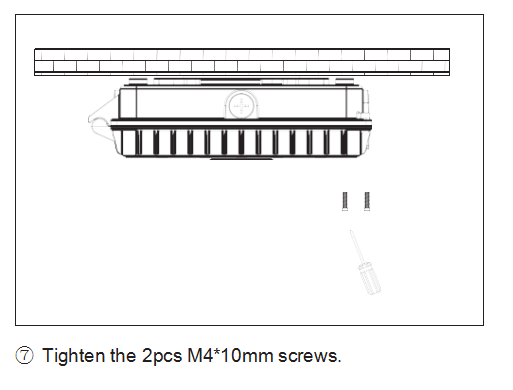

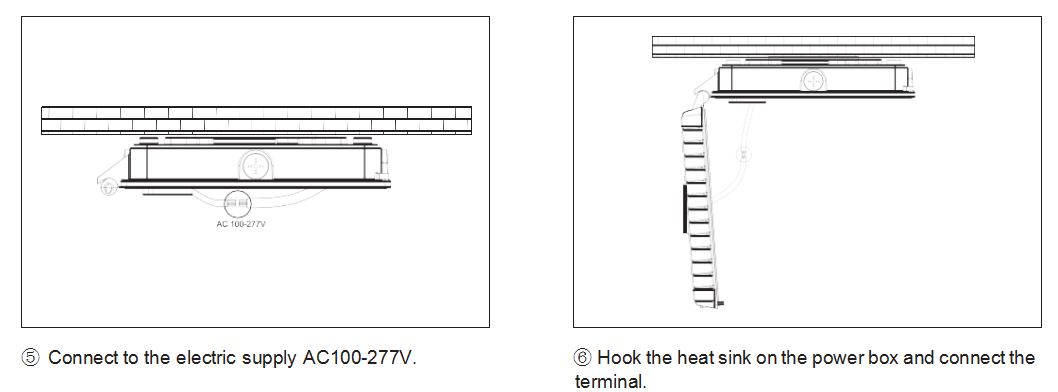

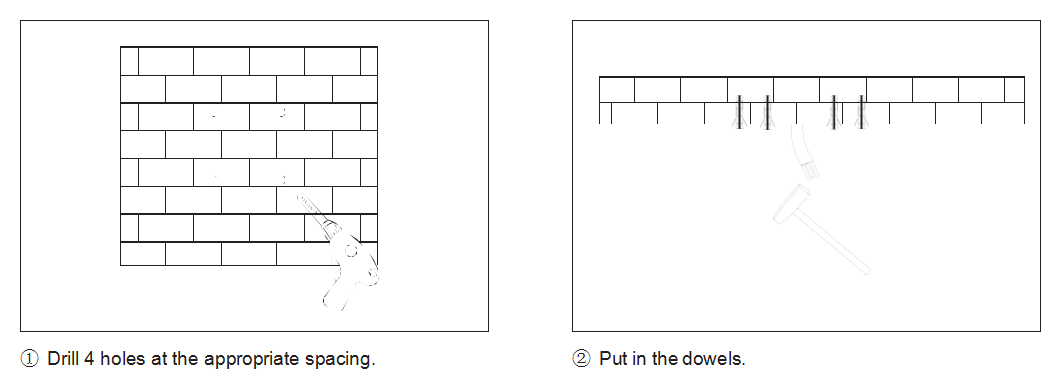

This luminaire must be directly wired on line. Any ballast or other power device previously used with the replaced luminaire must be removed.
Between the luminaire and any possibly flammable material must be an appropriate safety space (at least 20cm).
The luminaire must not be covered with heat insulating materials.
Always provide proper ventilation around the luminaire and do not exceed the maximum ambient temperature.
Compared to traditional lights the characteristic light distribution of this LED luminaire may differ. In order to be sure to meet your lighting requirementsa photometric check of the installation is recommended.
To avoid injuries, disconnect power to the light and allow the unit to cool down before performing maintenance.Warning: No user serviceable parts inside. Risk of electric shock. Removal of the cover will void the warranty.
Perform visual, mechanical and electrical inspections on a regular basis. We recommend routine checks to be made on an annual basis. Frequency of use and environment should determine this/
The PC cover should be cleaned periodically as needed to ensure continued photometric performance. Clean the PC cover with a damp, non-abrasive, lint-free cloth. If not sufficient, use mild soap or a liquid cleaner. Do not use an abrasive, strong alkaline or acid cleaner as damage may occur.
Inspect the cooling surfaces and fins on the luminaire to ensure that they are free of any obstructions or contamination (i.e. excessive dust build-up). Clean with a non-abrasive cloth if needed.
