OB-HB-CR-100 W |150 W | 200 W | 250 WSuspending HighbayLED HighBayProducts


OB-HB-CR-100 W |150 W | 200 W | 250 W

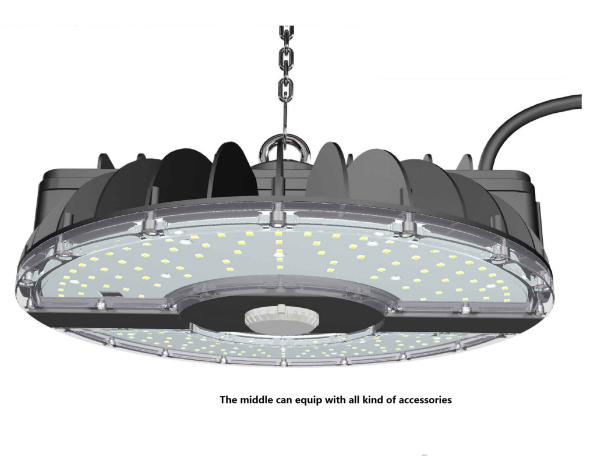

▪ Ultra slim heat sink design makes the lamp lighter and better in heat dissipation
▪ High lumen SMD3030 chip, luminous efficacy 152lm/w
▪ Waterproof IP67,high thermal conductivity housing
▪ Beam angle 120 degree PC lens with transmittance 92%
▪ Support all kinds of intelligent sensors(Microwave, Daylight, Camera)
PDF Documentation

Features

Specifications
Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterproof

(IP)

Download
OB-HB-CR-100 W154100WWWN/W/CW18000340mm*113mm 120D 100~277V/347V/480V IP67
OB-HB-CR-150 W210150WWWN/W/CW27000340mm*113mm 120D 100~277V/347V/480V IP67
OB-HB-CR-200 W288200WWWN/W/CW36000340mm*113mm 120D 100~277V/347V/480V IP67
OB-HB-CR-250 W308250WWWN/W/CW38000340mm*113mm 120D 100~277V/347V/480V IP67

Photometric Curve

Widely use in workshop,factory, warehouse,stadium,exhibition hall,supermarket,court,etc
