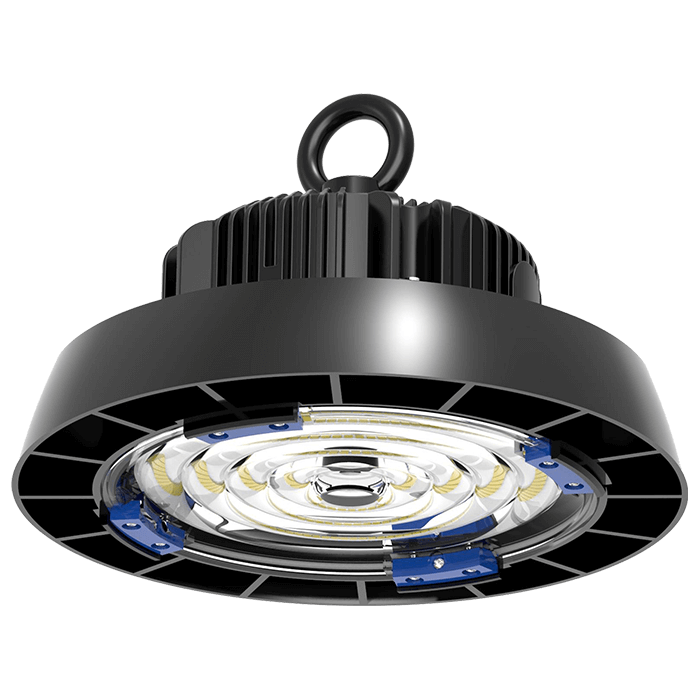

OB-UFO-100W,150W-C



This product has been applied for a patent (certificate number: 936191), which uses the Japanese premium PC material lens, three-level dimming,

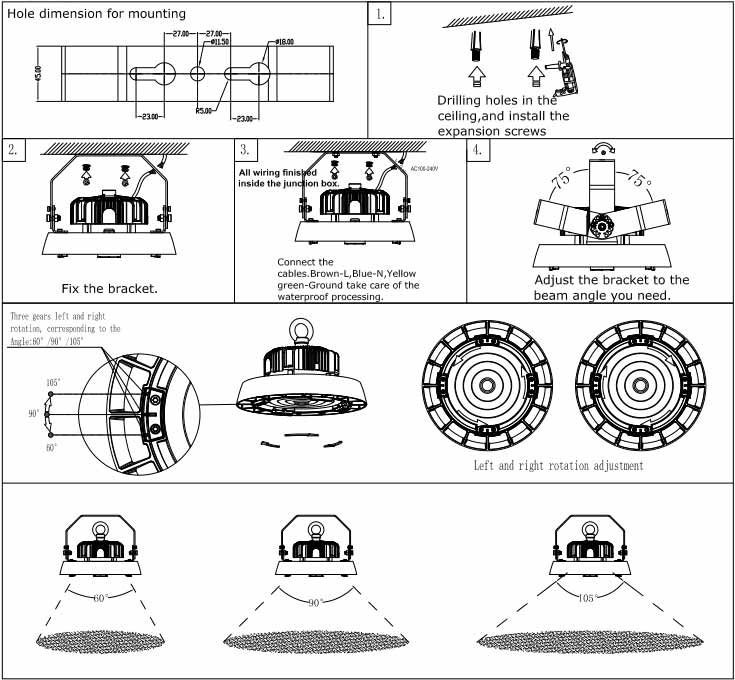

The angle adjustment range is wide (60°90°105°), the light extraction efficiency is high, and there is no yellow spot. The desired angle can be adjusted arbitrarily and the range of use is wide.



PDF Documentation

Features
The ADC12 aluminum ingot is integrally molded by die casting to meet the heat dissipation requirements.
 Spray outdoor pink optional, quality assurance, over 100 tests, salt spray test for 1000 hours.
 Adopting optional brand light sources such as SAMSUNG and LUMILEDS, the color rendering index Ra> 80;
? ? Through the internationally recognized LM80 standard, the light fade is small, the stability is the best, and the life is longer.
 HBG series Meanwell 5-year warranty drive power supply.
Optional controller for intelligent lighting.
The aluminum substrate adopts AL6061 and has a thickness of 1.5mm. The light source is more uniform and faster.
PC lens is made of Japanese Premium PC material, with a light transmission of up to 92% and higher light efficiency.
 Working environment temperature: -30 ° C ~ + 55 ° C
 IP65 protection level.

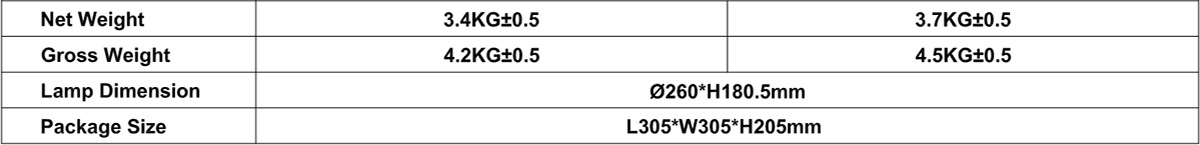

Specifications
Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

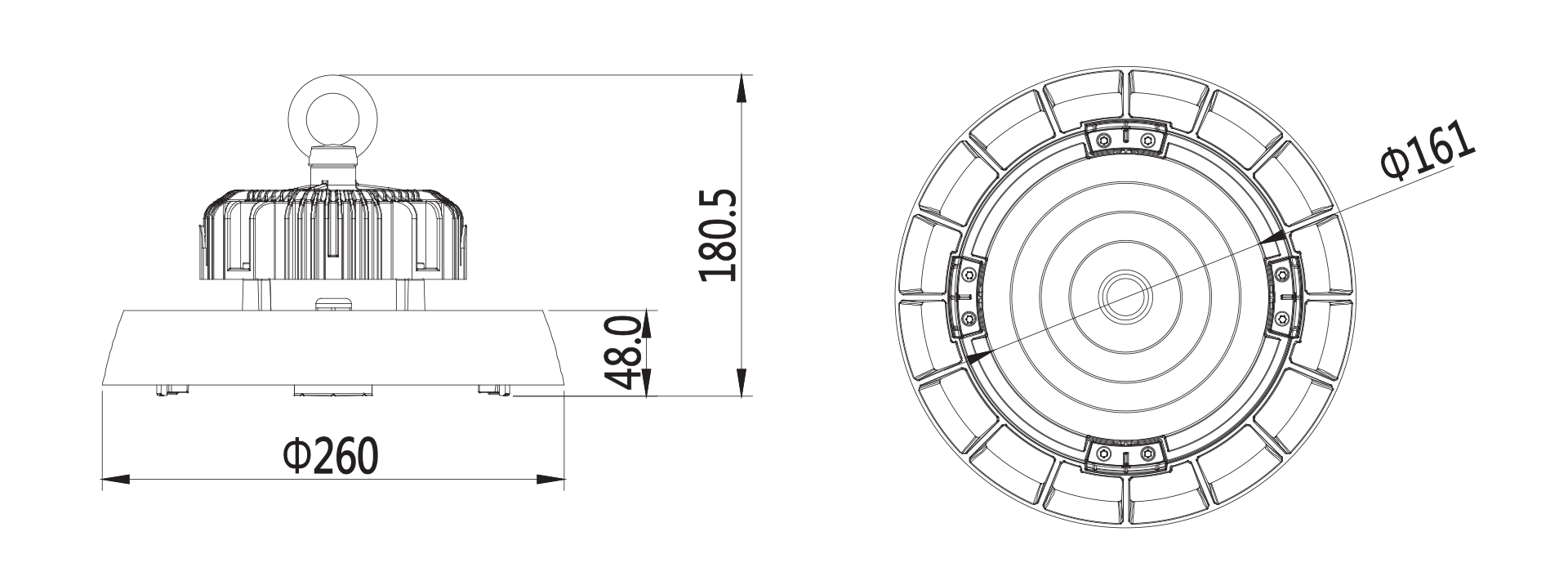

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterproof

(IP)

Download
OB-UFO-100W-C266P,182P,252P100WWW,NW,CW13000lm~14000Lm260mm*180mm 60°90°110° 85-277 VAC 65
OB-UFO-150W-C392P,252P,308P150WWW,NW,CW19500lm~21000Lm260mm*180mm 60°, 90°,110° 85-277 VAC 65

Photometric Curve
