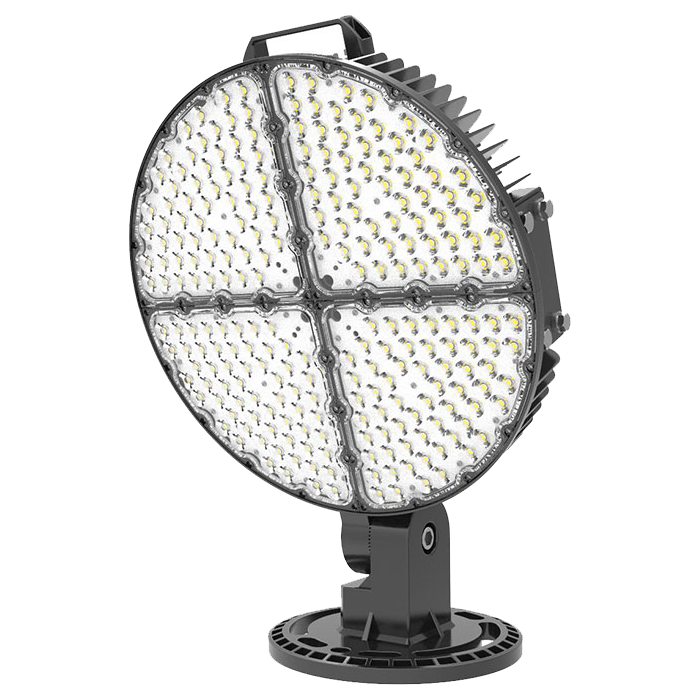

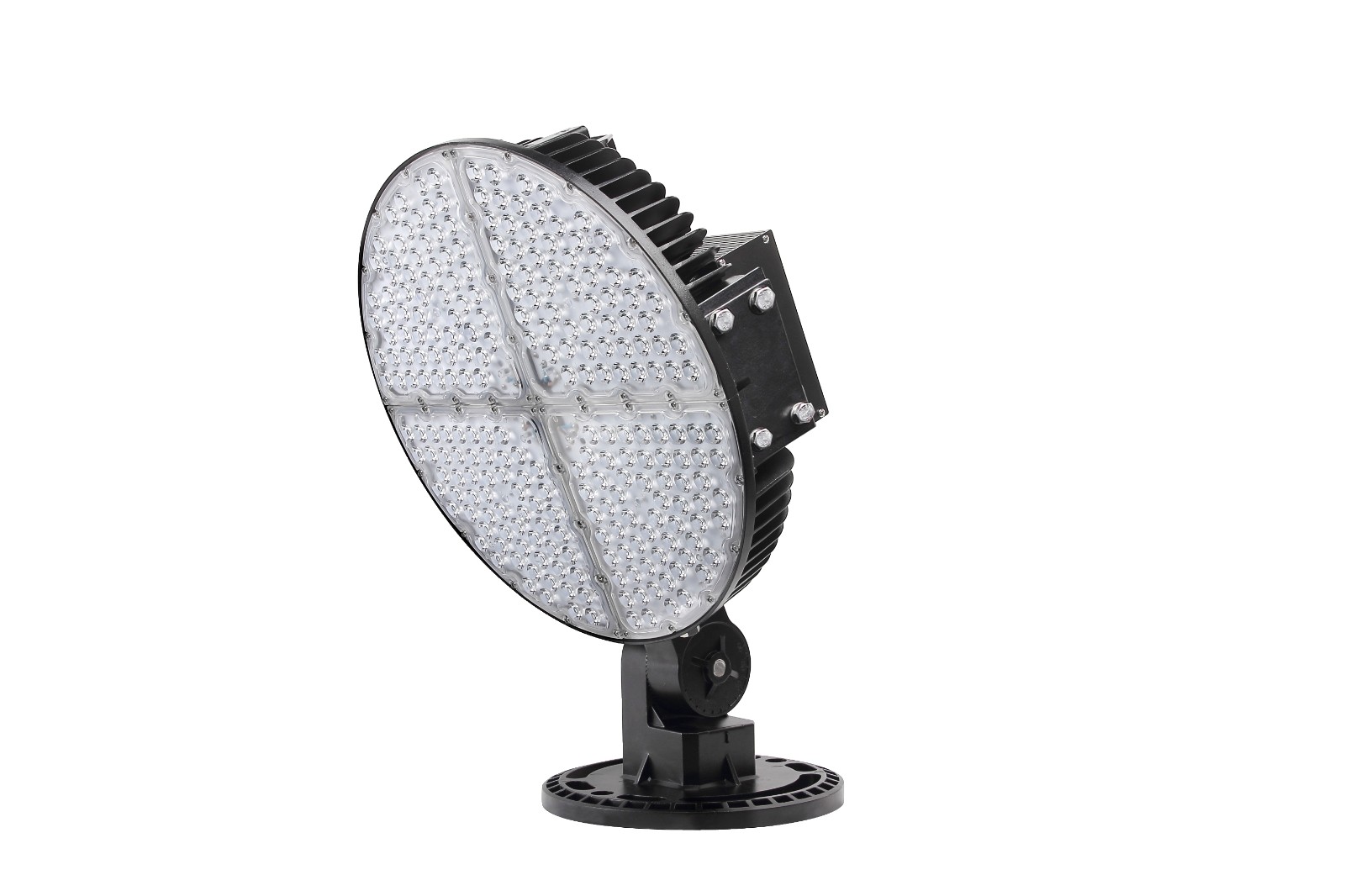

OB-HM-LM-500W,600W,1000W,1250W

Narrow Beam/ Round 500W Above

LED Highmast

Products

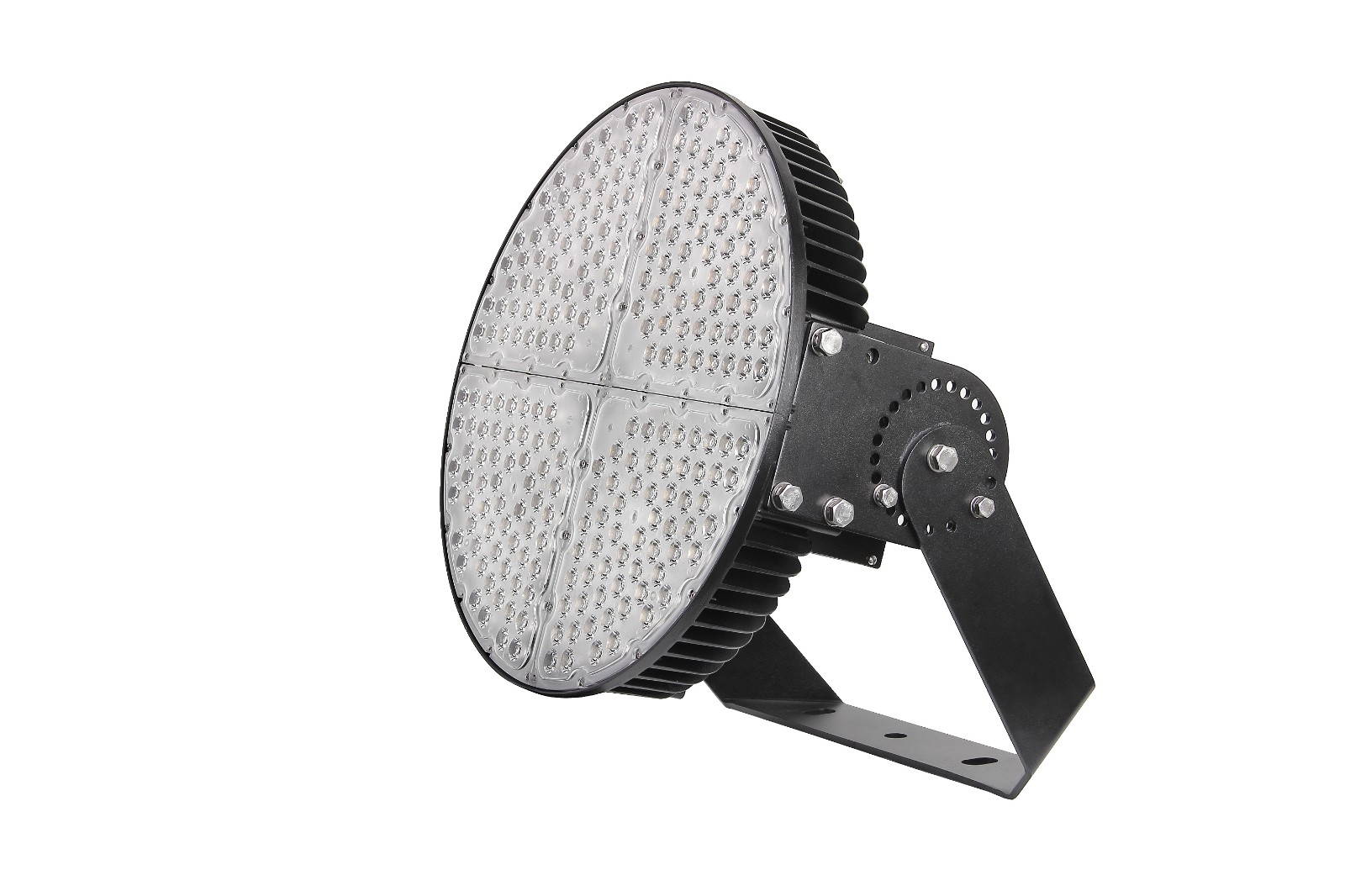

OB-HM-LM-500W,600W,1000W,1250W

Key Features

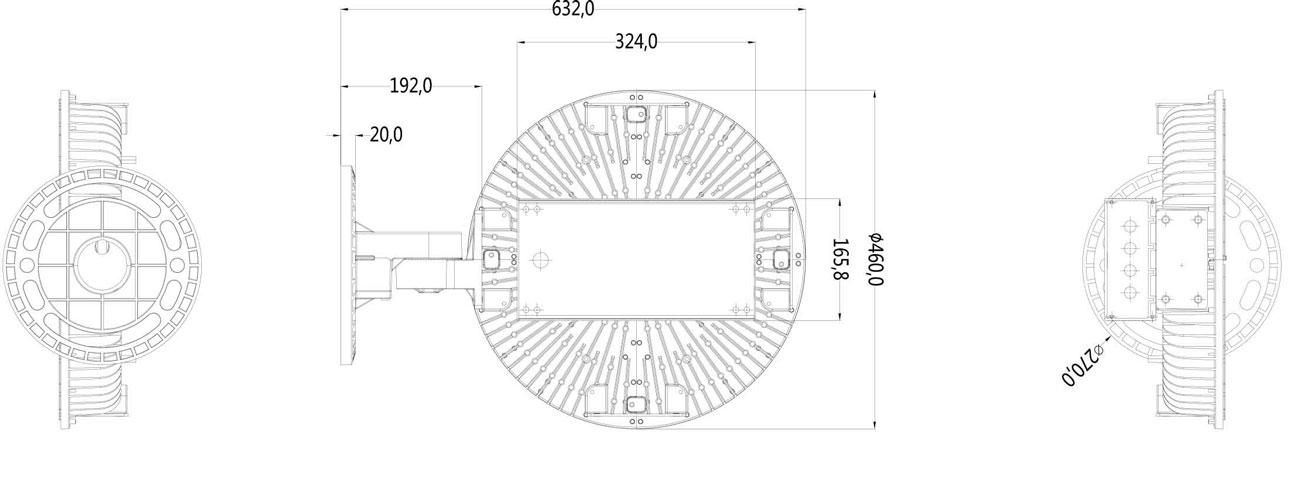

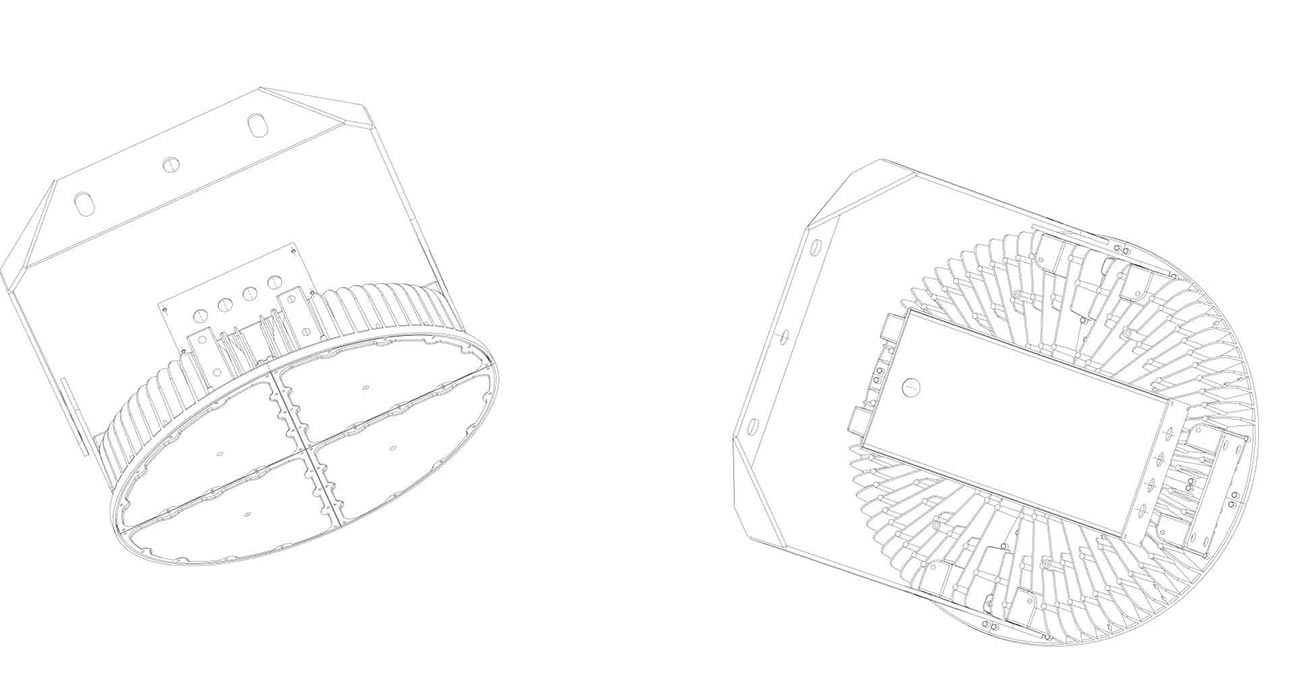

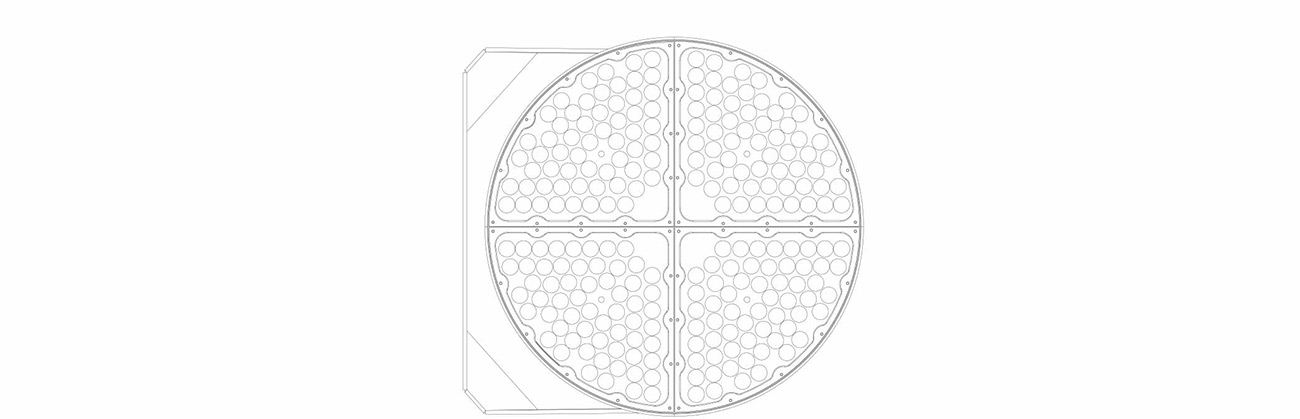

Mechanical Drawing

Flicker-free LED lighting meets HD photography and ultra-slow motion playback standards for large football fields, rugby fields, golf courses, ski resorts, racetracks and professional basketball courts.

PDF Documentation

Features

Specifications

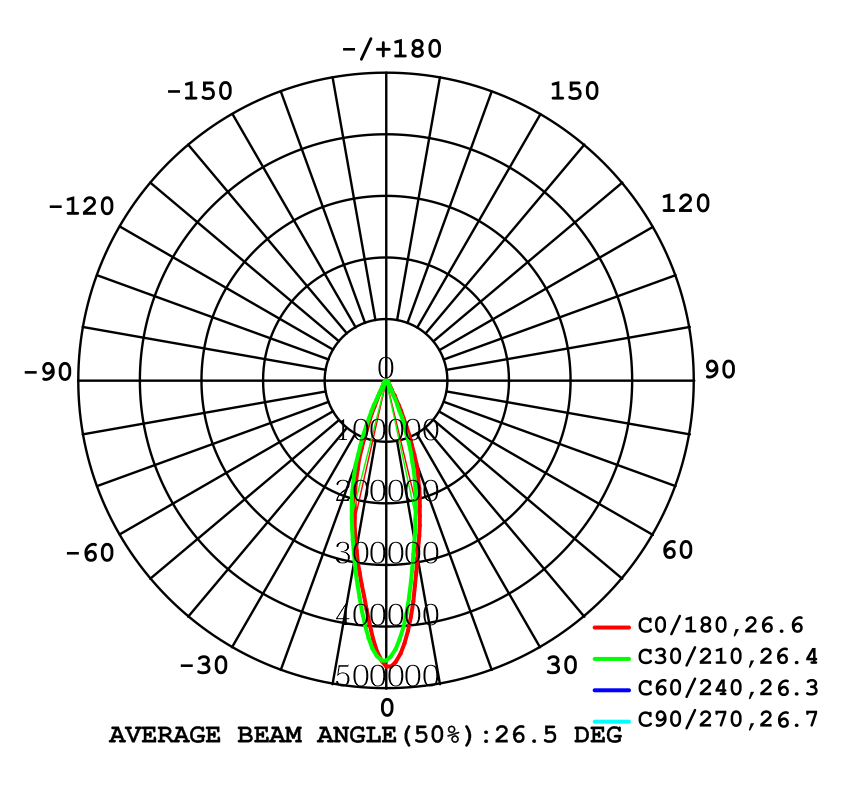

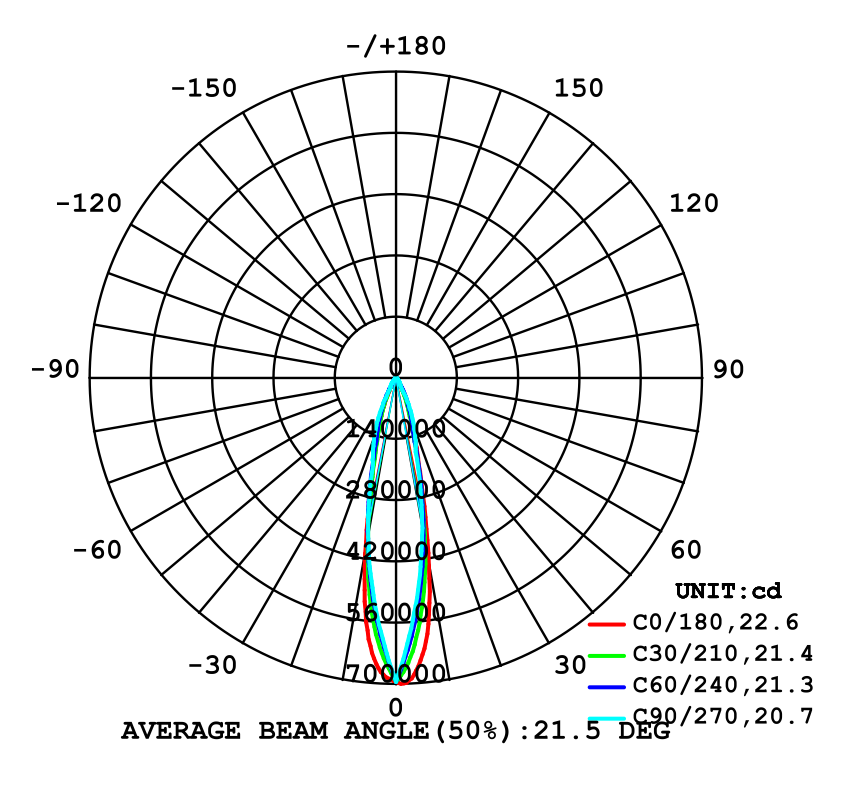

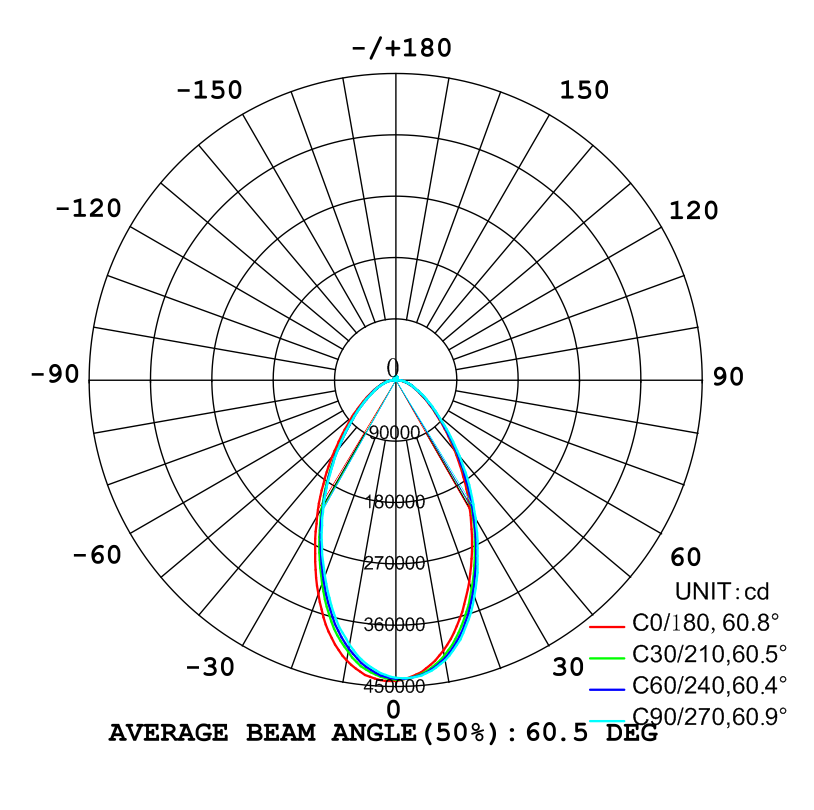

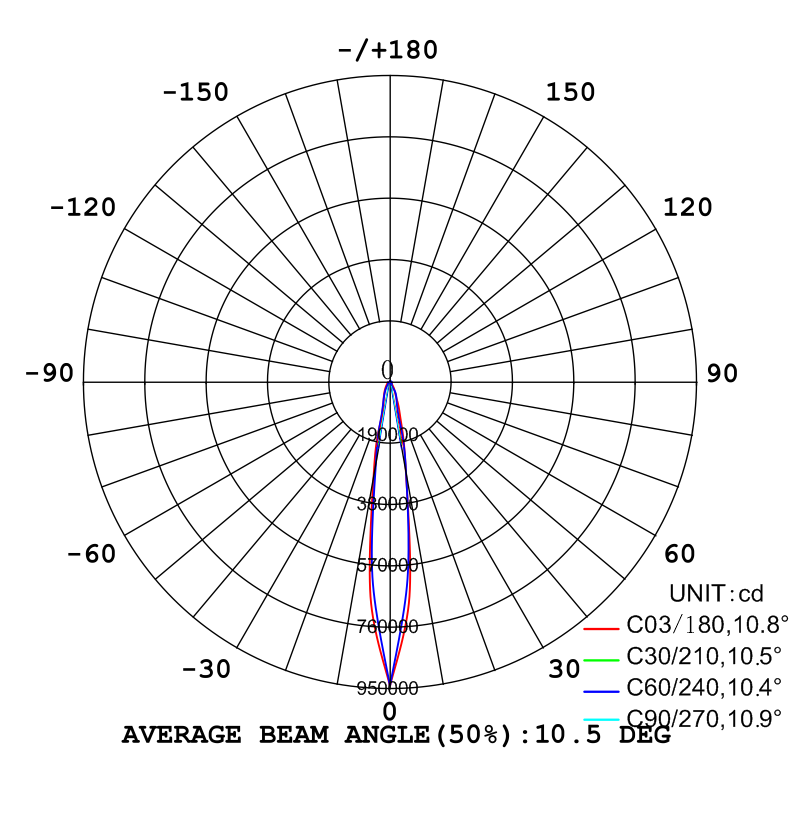

Model	LED (Pcs)	Wattage (W)	Colour	Lumens (Lm)	Size (mm)	Beam Angle(°)	Input Voltage(V)	Waterproof (IP)	Download
OB-HM-PL-500W	240Pcs	500W	3000K,4000K,5000K,6000K or 6500K;	62,500lm	460*164mm	10° 20° 25 °60°	85-265 VAC	IP66
OB-HM-PL-600W	240Pcs	600W	3000K,4000K,5000K,6000K or 6500K;	72,000lm	460*164mm	10° 20° 25 °60°	85-265 VAC	IP66
OB-HM-PL-1000W	480Pcs	1000W	3000K,4000K,5000K,6000K or 6500K;	125,000lm	460*164mm	10° 20° 25 °60°	85-265 VAC	IP66
OB-HM-PL-1250W	480Pcs	1250W	3000K,4000K,5000K,6000K or 6500K;	152,000lm	460*164mm	10° 20° 25 °60°	85-265 VAC	IP66
